TSQ7-40 3P
15 products sold in last 19 hours
Selling fast! Over 13 people have in their cart
Application
The changeover switch can switch on, load and break the circuit under the normal conditions,
using as switch disconnectors.
23 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

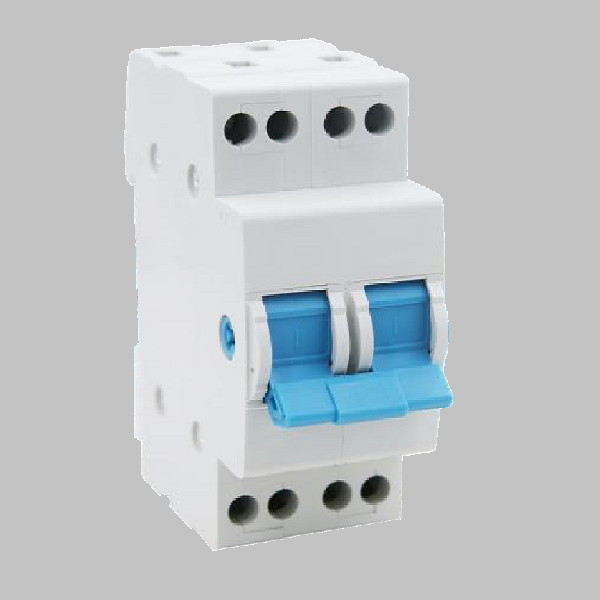

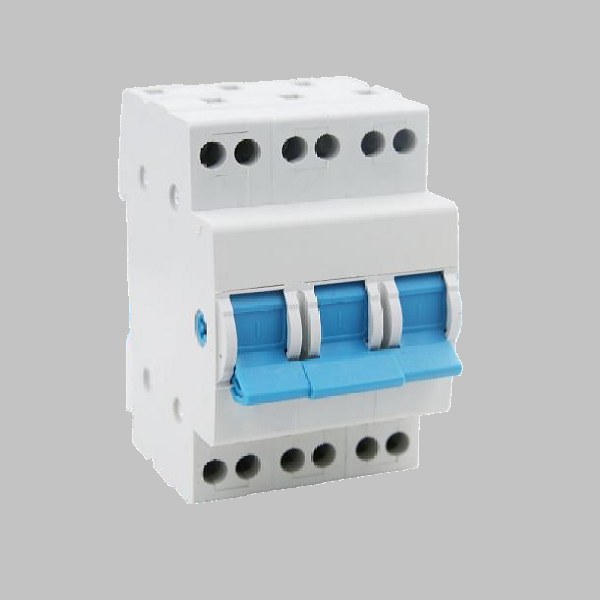

TSQ7-40 Load Break Switch Specifications
| Specification | Details |
|---|---|
| Model | TSQ7-40 |
| Number of Poles | 1P, 2P, 3P, 4P |
| Rated Working Voltage Ue | 240V / 415V |
| Frequency | 50 / 60 Hz |
| Rated Current (A) | 16, 25, 32, 40 |
| Standard | IEC 60947-3 |
| Icw (Short-Time Withstand Current) | 1000A / 1s |
| Icm (Rated Short-Circuit Making Capacity) | 3000A |
| Protection Level | IP20 |
| Contact Form | 1-0-2 |
| Ambient Temperature | -5°C to +40°C |
| Mounting | DIN rail EN 60715 (35mm) |
