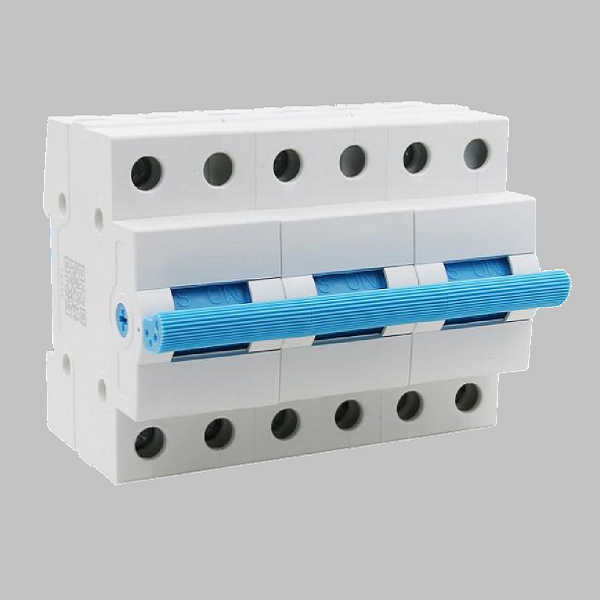

TSQ7-125 3P
18 products sold in last 12 hours
Selling fast! Over 14 people have in their cart
Application
The changeover switch can switch on, load and break the circuit under the normal conditions,
using as switch disconnectors
23 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
TSQ7-125 Load Break Switch Specifications
| Specification | Details |
|---|---|
| Model | TSQ7-125 |
| Number of Poles | 1P, 2P, 3P, 4P |
| Rated Working Voltage Ue | 240V / 415V |
| Frequency | 50 / 60 Hz |
| Rated Current (A) | 63, 80, 100, 125 |
| Standard | IEC 60947-3 |
| Icw (Short-Time Withstand Current) | 3000A / 1s |
| Icm (Rated Short-Circuit Making Capacity) | 5000A |
| Protection Level | IP20 |
| Contact Form | 1-0-2 (S-0-M) |
| Ambient Temperature | -5°C to +40°C |
| Mounting | DIN rail EN 60715 (35mm) |
