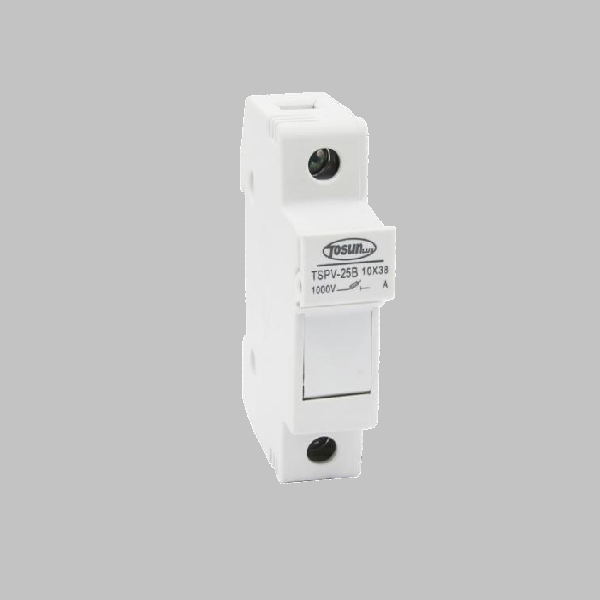

TSPV-25B
18 products sold in last 18 hours
Selling fast! Over 4 people have in their cart
Parameters and features
Standard: IEC60269-1 & IEC60269-6
Rated voltage: DC1000V
Rated current: 20A
Breaking capacity: 33 KA
Operating class: gPV
Protection objects: It is used in the photovoltaic combiner box to provide safe and reliable
protection for overload and short-circuit current faults of PV modules and PV arrays.
Applicable environment: Temperature, -5°C~+40°C;
Humidity, less than 90%
30 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Specification
| Model | Rated current (A) | Fuse link | Model | Rated current (A) | ||
|---|---|---|---|---|---|---|
| Melting I²t (A²s) | Clearing I²t (A²s) | Power loss 1.0 In (W) | ||||
| TSPV-25 | 1 | 8 | 32 | 0.9 | TSPV-25B TSPV-25BX |
32A |
| 2 | 13 | 48 | 1.0 | |||
| 3 | 22 | 65 | 1.3 | |||
| 4 | 32 | 86 | 1.5 | |||
| 5 | 50 | 100 | 1.6 | |||
| 6 | 57 | 135 | 1.8 | |||
| 8 | 80 | 152 | 2.1 | |||
| 10 | 120 | 188 | 2.3 | |||
| 12 | 130 | 230 | 2.7 | |||
| 15 | 180 | 310 | 3.0 | |||
| 20 | 230 | 420 | 3.6 | |||
| 25 | 310 | 420 | 3.6 | |||
| 32 | 420 | 660 | 4.5 | |||
