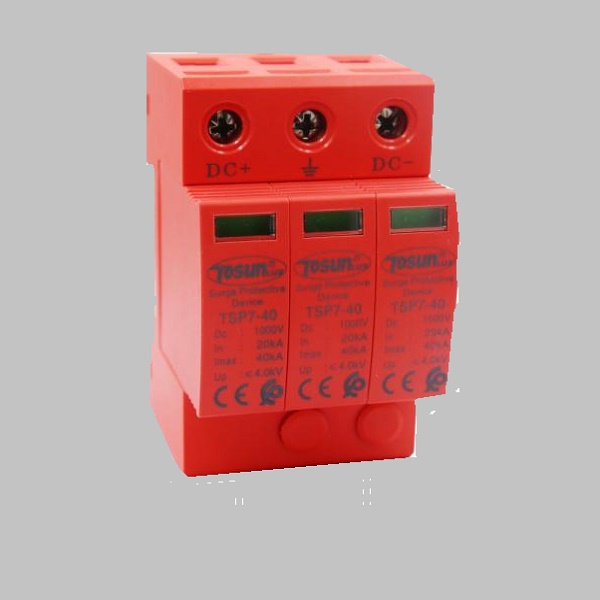

TSP7-3P
11 products sold in last 6 hours
Selling fast! Over 14 people have in their cart
- lnnovative tripping and breaking technology.
- Pluggable design, no need to interrupt the system when being plugged or unplugged.
- A single module can reach up to 40kA(8/20us).
24 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Specification
| Number of pole | 2P, 3P | |||||
|---|---|---|---|---|---|---|
| Nominal PV voltage (d.c.) (Uostc) | 500V | 600V | 800V | 1000V | 1200V | |
| SPD according to EN6 1643-11/IEC 61643-11 | Type2/Class II/T2 | |||||
| Nominal discharge current (8/20 μs) ( In ) | 10KA/20KA | |||||
| Max. discharge current (8/20 μs)(Imax) | 20KA/40KA | |||||
| Voltage protection level (Up) | ≤2.5KV | ≤2.5KV | ≤3.2KV | ≤4.0KV | <4.0KV | |
| Response time (tA) | 25ns | |||||
| Operating temperature range (Tu) | -40°C… +80°C | |||||
| Operating state fault indication | Green: normal / Red: invalid | |||||
| Number of output port | 1 is available when needed | |||||
| Installation | Din rail | |||||
| Place of installation | Indoor installation | |||||
| Degree of protection | IP20 | |||||
