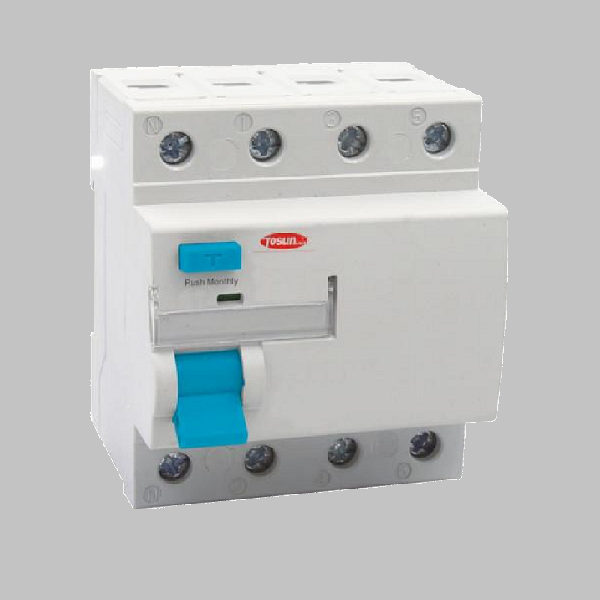

TSL3-63B 3P+N
2 products sold in last 4 hours
Selling fast! Over 2 people have in their cart
Function
TSL3-63B is a type of circuit breaker with a complete updated residual current detection,
based on the current type A RCCB. It can not only protect AC and pulsing DC (A type), as well
as the possible compound residual current (F type), effectively, but also smooth DC and high
frequency residual current (1KHz). In a circuit consisting of rectifier, an inverter, a frequency
inverter, etc., the leakage current caused in a DC loop circuit can be effectively detected and
protected.
Application
Industry, medical, EV charger, elevator, etc
Conforms to standard: IEC/EN61008-1, IEC/EN62423
Detection residual current type: AC+A+ smoothing DC +F+ high frequency signal (1KHz)
26 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Specifications
| Specification | Details |
|---|---|
| Rated voltage | 240V ~ 1P+N, 415V ~ 3P+N |
| Rated current | 16A, 25A, 32A, 40A, 63A |
| Rated residual operated current | 0.03A, 0.1A, 0.3A |
| Poles | 1P+N, 3P+N |
| Type of residual current | Type B (AC + A + smoothing DC + F + high frequency signal 1KHz) |
| Rated limited short circuit current | 10000A |
| Rated making and breaking capacity | 1000A |
| Rated residual making and breaking capacity | 1000A |
| Rated insulation voltage | 1P+N: 250V, 3P+N: 500V |
| Rated impulse withstand voltage | 4000V |
| Electrical life | 2000 times |
| Mechanical life | 10000 times |
| Operated ambient temperature | -25°C ~ +40°C |
| Storage ambient temperature | -25°C ~ +70°C |
| Tightening torque | 3 N·m |
| Connection capacity | 16 mm² |
| Pollution level | 2 |
| Protection level | IP20 |
