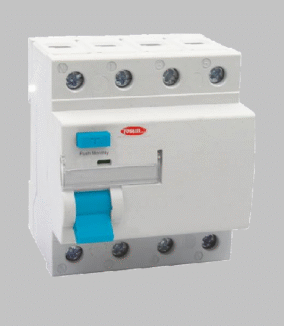

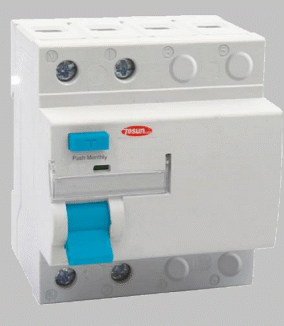

DC Residual Current Circuit Breaker

Function
TSL3-63B is a type of circuit breaker with a complete updated residual current detection,
based on the current type A RCCB. It can not only protect AC and pulsing DC (A type), as well
as the possible compound residual current (F type), effectively, but also smooth DC and high
frequency residual current (1KHz). In a circuit consisting of rectifier, an inverter, a frequency
inverter, etc., the leakage current caused in a DC loop circuit can be effectively detected and
protected.
Application
Industry, medical, EV charger, elevator, etc
Conforms to standard: IEC/EN61008-1, IEC/EN62423
Detection residual current type: AC+A+ smoothing DC +F+ high frequency signal (1KHz)
